MANDATORY MAINTENANCE
& WARRANTY INFORMATION
FORD SHELBY BAJA RAPTOR OWNER'S MANUAL
TABLE OF CONTENTS
Make a selection below to jump to that section
We are here to help!

If you are having an issue with your vehicle, or if your check engine light comes on, please immediately contact us to be directed to your nearest Shelby vehicle servicing dealer.

If your vehicle is in the dealer service department for more than 3 business days, please contact us so we can get involved & help!


Hours of Operation: Monday-Friday: 8 A.M. – 5 P.M. EST


supercharger@drivetuscany.com


574.970.7792

FAILURE TO FOLLOW THESE REQUIREMENTS WILL VOID THE LIMITED WARRANTY
FUEL REQUIREMENTS
  • Use 93 Octane Fuel (no less than 91 Octane)
  • DO NOT use Octane Booster
  • Drain & Replace Fuel After 6 Months of No Driving
SPARK PLUGS
  • Factory Regap to .025”
ALTERATION TO THE TUNE
  • DO NOT Alter or Change the Tune
AIR FILTER
  • Inspect, clean, and re-oil the air filter every 10,000 mi (16,000 km)

THE 3 YEAR / 36,000 MILE POWERTRAIN WARRANTY IS NON-TRANSFERABLE
ROUTINE MAINTENANCE
ITEM GRADE INTERVAL
Engine Oil Change Reference Ford Owner’s Manual Reference Ford Owner’s Manual
Air Filter Cleaning 10,000 mi (16,000 km) or less
Spark Plugs Factory Regap to .025” 12,000 mi (19,300 km) or less
Initial Alignment Inspection At First Oil Change 3,000 mi (4,800 km)
Alignment Inspection At Tire Manufacturer’s Recommended Tire Rotation
Tire Rotation Per Tire Manufacturer’s Recommendation
Lug Nut Inspection 500 mi (800 km) after each tire installation
TURBOCHARGER
FUEL REQUIREMENTS

United States:
  • Use 93 (R+M)/2 octane when available.
  • DO NOT use less than 91 (R+M)/2 octane.
  • *MAX E10/10% Ethanol
Canada:
  • Use 93 (R+M)/2 octane rated fuel when available.
  • DO NOT use less than 91 (R+M)/2 octane.
  • *MAX E10/10% Ethanol
Saudi Arabia:
  • Use RON 95 octane.
  • DO NOT use less than RON 95 octane.
Kuwait | Qatar | United Arab Emorates
  • Use RON 98 octane when available.
  • DO NOT use less than RON 95 octane.
CAUTION
Only use trusted, premium refueling stations for optimal performance.

DO NOT use octane boosters.

Top tier fuels are fuels that meet a higher standard of quality than traditional gasoline or diesel. They contain detergent additives that keep engines running more smoothly and increase engine performance.

Examples of Top Tier brands: 76, BP, Chevron, Mobil, Phillips 66, Shell, Sunoco, Texaco.

ENGINE REQUIREMENTS

For best performance and continued reliability, it is essential to adhere to the following requirements:

  1. Adhere to the Routine Maintenance Schedule for proper engine upkeep (See Here).

  2. Always listen for any sign of spark knock or pinging. If present, discontinue use immediately and contact the Service and Warranty Department.

  3. Do not operate the vehicle at 80% throttle or higher if the malfunction indicator light is on steadily. Do not clear codes unless instructed to do so by a Service and Warranty representative. (If your malfunction indicator light turns on, immediately contact the Service & Warranty Department)

Use the supplied flash tool, located in the center console, to read the diagnostic trouble code and consult with the Service and Warranty Department.

Power Control Module
CAUTION
Changing / updating the tune will void the limited warranty.

Any modification to your vehicle’s new computer program may cause serious damage to the engine and/or drivetrain. The Power Control Module (PCM) is locked to the VIN. Never let anyone, including dealerships, install updates to the PCM. Modifications to the PCM will return the engine power to stock levels.

Turbocharged Transmission Operation

Hard shifting is a normal characteristic of the high performance vehicle.

Vehicle Long Term Storage

Long term storage can cause premature damage to components on your vehicle. When storing for 6+ months, please: Drain fuel system completely (do not run the engine to drain tank- this will damage the engine.) Ensure all other fluids are fresh and topped off.

*Gasoline has a shelf life of 3-6 months from the date of manufacture. Afterwards, the octane rating begins to deminish and may harm the engine.

VEHICLE CARE
Interior

Seating and Interior Surfaces:

The Shelby upfit utilizes the original equipment manufacturer’s seat bases, safety belts, power and manual seat adjustment controls, seat frames and foam seat components. For issues related to any of these items, please refer to the original equipment owner’s manual.

Shelby truck upfits feature high quality interior surfaces that have been selected for durability, color retention, and resistance to staining. In order to preserve the integrity of the interior surfaces, harsh or caustic cleaning products should be avoided. Recommended products for routine cleaning and conditioning of the interior components are listed below.

Cleaning Products:

Interior trim: Use household glass cleaner and wipe with a soft cloth.

Leather surfaces: Use automotive leather cleaners and conditioners. Refer to the original equipment owner’s manual.

Window tint: Clean with household window cleaner and wipe with a soft cloth.

Exterior
CAR WASHES
Automatic car washes with rotating brushes that make contact with the vehicle’s surface should be avoided in order to prevent damage to the ABS body panels, fender flares and optional chrome trim.
Paint Finish:

Shelby utilizes original equipment manufacturer’s base coat and clear coat automotive finishes. Wash your vehicle regularly with cool or lukewarm water and a neutral pH shampoo, we recommend Motorcraft Detail Wash. Never use strong household detergents or soap, for example dish washing or laundry liquid. These products can discolor and spot painted surfaces. Never wash your vehicle when it is hot to the touch, or during strong or direct sunlight.

Dry your vehicle with a chamois or soft terry cloth towel to eliminate water spotting. Regular waxing is necessary to protect your car’s paint from the elements. We recommend that you wash and wax the painted surface once or twice a year.

Accent Graphics:

High quality vinyl automotive accent graphics may be used by Shelby on some models. Mild detergents and automotive soap may be safely used on the graphics; however, high pressure sprays and wax should be avoided.

Running Boards:

The running boards are designed for a maximum weight capacity of 350 pounds.

Tonneau Covers:

Tonneau covers are made from ABS plastics or fiberglass and painted with the original equipment base coat and clear coat. The ABS polymer body of your Tonneau cover requires only periodic cleaning with mild car wash soap. Only use cleaners, waxes, or products that are labeled, “Safe for use on plastics”.

DO NOT allow chemicals or substances come into contact with your Tonneau cover, unless labeled “Safe for plastics”. Avoid the use of abrasive type cleaners as they may dull the finish. Be sure that products such as Off® or other insecticide do not get on the cover from contact with your hands or other parts of your body. This could cause serious damage and discoloration. The paint finish is a base coat/clear coat automotive finish. Care for the painted finish on the cover as you do the painted finish on your truck. Avoid using an abrasive cleaners or cloths on your cover. Use only cleaners and waxes that are safe for use on clear coat paint finishes.

Chrome Surfaces:

Chrome aluminum wheels and chrome steel tow hooks should be washed with a mild automotive detergent and polished or waxed regularly in order to protect the surfaces from corrosion.

Chrome plastic grille inserts, door handle covers and optional mirror covers should be washed with a mild automotive detergent and waxed in order to maintain and preserve the original finish.

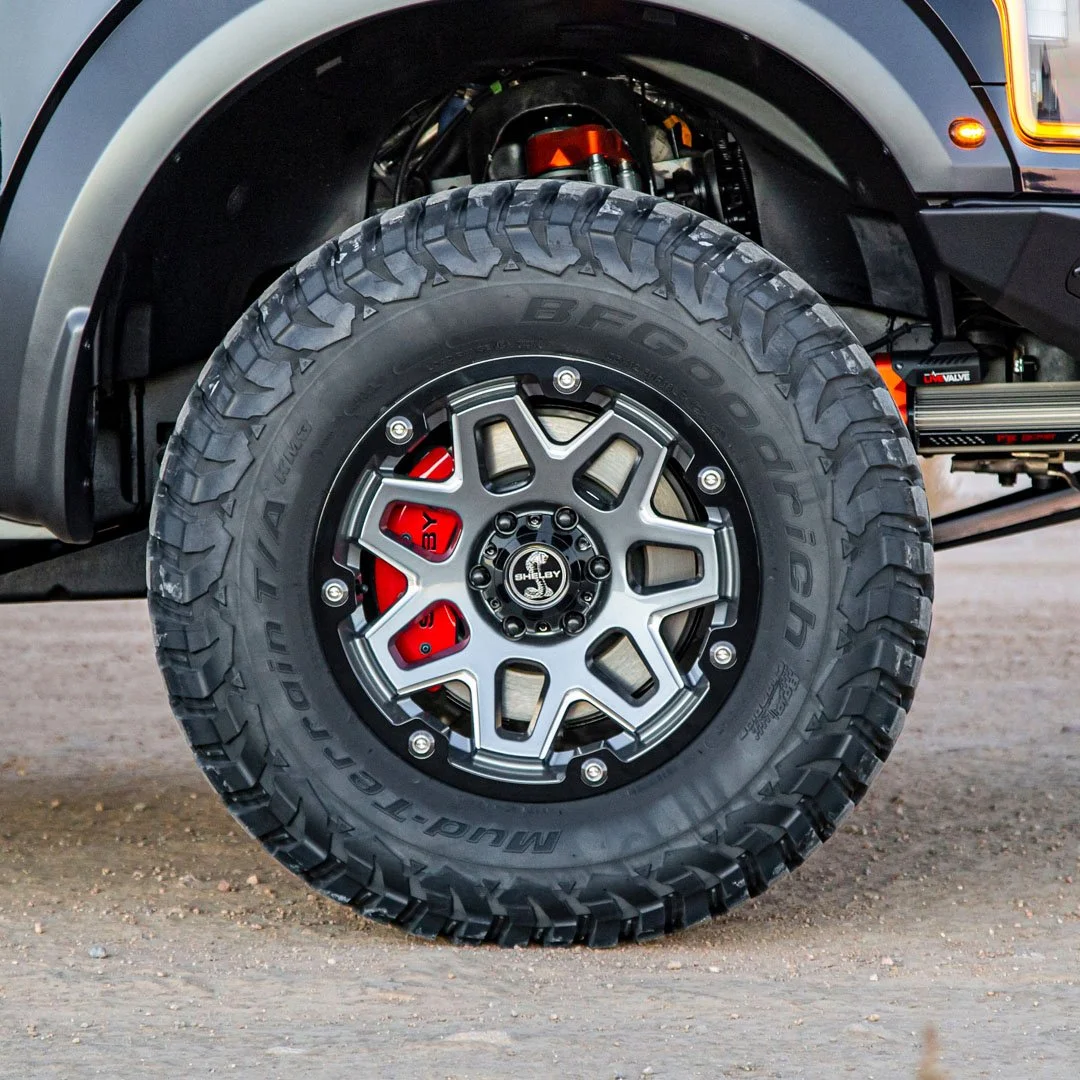

WHEELS AND TIRES
MAINTENANCE

Custom Tires:

Please review the Shelby tire information placard located in the driver’s doorjamb for pressure and loading information for the custom tires on this vehicle. This information is applicable to all of the custom tires provided by Shelby.

Custom Wheels:

All trucks are equipped with the original spare tire, and the original equipment placard remains applicable to the spare tire and wheel.

Cleaning Guidelines:

Proper cleaning guidelines and precautions should be employed in order to ensure that the custom wheels continue to look like new.

  • Do not use any type of chrome cleaner or acidic cleaner. Chrome cleaners contain harsh chemicals that can cause discoloration or peeling.
  • Clean the wheels with a mild soap and water, wiping with a microfiber or soft felt cloth. DO NOT use high pressure steam, air polishing tools, or stiff brushes on the wheels. Only clean the wheels when they are cool.
  • A high-quality non-abrasive wax may be applied in order to protect the finish of the wheel after it is cleaned.

Clean and maintain your wheels on a regular basis. If you live in a harsh weather environment or if the wheels are exposed to a harsh environment, increase the frequency of the maintenance.

SPARE WHEELS AND TIRES

If your vehicle is equipped with a conventional spare tire that is different from the upgraded road tires and wheels that are on the vehicle, please follow Shelby’s guidelines. The spare tire/wheel provided may be different in brand, size, and appearance from the road tires/wheels that are provided on the vehicle.

If the conventional spare tire is different in size it should NOT be used as a temporary replacement on either of the rear tires. The use of the conventional spare tire on the rear tire positions can result in damage to the rear differential. Therefore, the replacement of a rear tire/wheel will necessitate the rotation of the right front tire wheel as a replacement for a damaged rear tire/wheel. Since the spare tire/ wheel is different from the upgraded tires and wheels on the vehicle, it is important that proper procedures be followed when changing and using the spare tire.

If the spare is dissimilar from the tires/wheels on your vehicle, it is intended for temporary use only. If the spare is used it should be replaced as soon as possible with a tire/wheel of the same size and design as the tires/wheels provided on the vehicle.

Vehicles equipped with a conventional jack should use caution while lifting the vehicle. It is important that proper procedures are followed with respect to the use of the jack in order to avoid damage to the vehicle and/or personal injury.

The use of a dissimilar spare tire will result in changes in certain driving characteristics of the vehicle. The use of the dissimilar spare tire will lead to the impairment of the following:

  • Handling, stability and braking performance
  • Comfort and noise
  • Ground clearance
  • Winter weather driving capability
  • Wet weather driving capability

When using a dissimilar spare tire on this vehicle, care should be exercised while driving the vehicle. You should NOT:

  • Drive in excess of 50 miles/80 km per hour
  • Overload the vehicle
  • Use more than one dissimilar spare
  • Tow a trailer or vehicle
  • Use four-wheel drive
CHANGING A FLAT TIRE

Precautions:

If you have a flat tire while driving you should brake gently to decrease the vehicle’s speed, holding the steering wheel firmly and moving to a safe parking place on the side of the road.

Before changing the tire, you should:

  • Park on a level surface
  • Activate the hazard lights
  • Place the gearshift in the park position
  • Set the parking brake
  • Turn off the ignition

The vehicle should be a safe distance from the road in order to avoid the danger of being hit while operating the jack or replacing the tire.

CAUTION
Prior to attempting to change the flat tire, review the warnings, information, and instructions set forth in the wheels and tires section of the factory owner’s manual.

WARNING - When one of the front tires is off the ground, the transmission alone will not prevent the vehicle from moving or slipping off the jack even if the transmission is in park (P).

WARNING - In order to prevent the vehicle from moving while the tire is being changed, in addition to shifting the transmission to park (P) and setting the parking brake, the wheel diagonally opposite the wheel being changed should be blocked or chocked on both the front and back of the tire/wheel.

WARNING - Do not work on the vehicle when the jack is the only support. Always use a jack stand or other appropriate support. If the vehicle slips off the jack, serious injury can occur. No person should place any portion of their body under a vehicle that is supported by a jack.

WARNING – Do not attempt to change a tire on the side of a vehicle close to moving traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel.

WARNING – Always use the jack provided as original equipment with your vehicle. If using a jack other than the one provided, make sure that the jack capacity is adequate for the vehicle weight, including cargo and/or modifications. If you are unsure if the jack capacity is adequate, contact your authorized dealer.

Running Board Safety

*Example of electric running boards being unplugged.

WARNING – If the vehicle has electric running boards, switch off electric running boards before jacking or placing any object under the vehicle. To switch the electric running boards off, simply unplug them from the On-Board Diagnostics port (OBD-ll) located under the dash (see images below).

Never place anything between the extended running board and the vehicle. A running board in operation may cause injury.

  1. Remove jack and tool bag: The vehicle jack and tool bag are located on the rear passenger side of the vehicle. Remove the jack and tools following the steps outlined in the Factory Owner’s Manual.

  2. Remove the spare tire: The spare tire is located under the vehicle immediately forward of the rear bumper. Remove the spare tire following the steps outlined in the Factory Owner’s Manual.

    Note: If the damaged or flat tire is a rear tire, it will be necessary to remove the right front tire to use as the replacement to the damaged or flat rear. This will necessitate that the conventional spare tire will be used to replace the right front tire. As a result, you will have to change two tires wheels in order to resolve the issue.


  3. Block or chock the front and rear of the wheel/tire diagonally opposite the tire being removed.

  4. Loosen each wheel lug on the affected tire half a turn counterclockwise but DO NOT remove them.

  5. Place the jack at the location outlined in the Factory Owner’s Manual.

  6. Turn the jack handle clockwise until the wheel/tire being changed is completely off the ground.

  7. Remove the loosened lug nuts.

  8. Remove and replace the wheel/tire, making sure that the valve stem is facing outward.

  9. Reinstall the lug nuts until they are snug against the wheel.

  10. Lower the wheel by turning the jack counterclockwise.

  11. Fully tighten the lug nuts.

  12. Replace jack and tool bag. Place custom tire/wheel to be repaired in the bed of truck.

*Only the conventional spare should be placed in the spare tire location under the vehicle. Follow the instructions in the Factory Owner’s Manual for storing the jack, tool bag, and conventional spare tire

SCHEDULED MAINTENANCE

Alignments:

Inspect the alignment at the first oil change 3,000 mi/4,800 km. After the initial alignment, routine inspections of the alignment should occur as the tire manufacturer recommends.

Tire Rotation:

Tires should be rotated as the tire manufacture recommends.

Lug Nut Maintenance:

Check and tighten wheel lug nuts regularly during the first 500 miles/ 800 km of operation. Periodically check lugs for proper torque (See original equipment owner’s manual). Re-tighten lug nuts at 500 miles/800 km after any wheel disturbance (tire rotation, flat tire, wheel removal, etc.). Check lugs before trips and following storage.

LIMITED WARRANTY

Limitation and Disclaimer Of Implied Warranties

ANY IMPLIED WARRANTY FOUND TO ARISE BY WAY OF STATE OR FEDERAL LAW, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT-ABILITY OR ANY IMPLIED WARRANTY OF FITNESS, IS LIMITED IN DURATION TO THE TERMS OF THIS LIMITED WARRANTY AND IS LIMITED IN SCOPE OF COVERAGE TO THE PORTION OF THE PRODUCT COVERED BY THIS LIMITED WARRANTY.

Any implied warranty of merchantability found to arise is also limited to substantial defects that existed at the time of sale, surfaced within the time period of the implied warranty, and were discovered and reported within the time period of the implied warranty of merchantability.

Tuscany disclaims any express or implied warranty, including any implied warranty of fitness or merchantability, on items excluded from the coverage of this limited warranty. Tuscany makes no warranty of any nature beyond that contained in this limited warranty. No one has authority to modify or enlarge this limited warranty or to create any other obligation for Tuscany. Any selling or servicing dealer is not Tuscany’s agent, but an independent entity. Tuscany is not responsible for any representation, warranty, or undertaking by any dealer or anyone else beyond what is stated in this limited warranty.

Disclaimer Of Consequential and Incidental Damages

YOU ARE NOT ENTITLED TO ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES THAT MAY RESULT FROM BREACH OF THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY. THIS EXCLUSION OF THESE DAMAGES SHALL BE INDEPENDENT OF ANY FAILURE OF THE ESSENTIAL PURPOSE OF ANY WARRANTY, AND THIS EXCLUSION SHALL SURVIVE ANY DETERMINATION THAT THIS LIMITED WARRANTY, OR ANY IMPLIED WARRANTY, HAS FAILED OF ITS ESSENTIAL PURPOSE.

This warranty does not cover, and Tuscany is not liable for, towing, shipping, or transportation expenses, travel, lodging, rental vehicles, loss of work, or any other expenses incurred due to loss of use of the product or other reason, even if the product is under warranty.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

Obtaining Warranty Service

To obtain warranty service the owner must do all of the following: (1) Within 10 days of discovering a defect in material or workmanship, and within the warranty period, contact an independent, authorized dealer of Tuscany or the Tuscany warranty department by telephone at 574.970.7792, supercharger@drivetuscany.com or by mail at 2811 Tuscany Drive, Elkhart, IN 46514; (2) Promptly schedule an appointment for service; and (3) Deliver the vehicle for service at your expense. If at any time you believe that you are not receiving proper service from an independent, authorized service center or if you have questions about this limited warranty, please contact us at the information noted above. In addition, if 2 or more service attempts have been made to correct any covered defect that you believe impairs the value, use, or safety of the product, or if it has taken longer than 15 days to get repairs completed, you must, to the extent permitted by law, notify Tuscany directly, in writing, so that Tuscany can become directly involved in making sure that you are provided service in accordance with the terms of this limited warranty. In addition, Tuscany reserves the right to require that the product be returned to Tuscany for certain repairs, at your expense.

What Is Not Covered

This Limited Warranty does not cover any of the following: defects in materials, components or parts of the product not attributable to Tuscany; any material, component, or part of the product that is warranted by another entity (the written warranty provided by the manufacturer of the material, component, or part is the direct responsibility of that manufacturer/warrantor); defects in parts, materials, or workmanship of the original chassis that Tuscany does not alter; any vehicle sold outside the United States not sold through an in-country dealer authorized by Tuscany to sell its products; items that are added or changed after the product leaves Tuscany’s possession; additional items installed at any dealership, other place of business, or another party, other than Tuscany; any product used for rental or other commercial purposes (Note: It shall be concluded that the product has been used for commercial and/or business purposes if the product owner or user files a tax form claiming any business or commercial tax benefit related to the product, or if the product is purchased, titled, or registered in a business name); any product sold from a dealers’ rental fleet; normal wear, tear, usage, maintenance, service, and periodic adjustments; imperfections that do not affect the product for its intended purpose; items that are working as designed but that you are unhappy with; problems related to mis-operation, misuse, mishandling, neglect or abuse, including failure to maintain the product in accordance with the owner’s manuals, or other routine maintenance such as inspections, lubricating, adjustments, tightening of screws, wheel alignments or rotating tires, operating fluids, undercoat inspection and maintenance; damage due to accident or collision, including any acts of weather, damage, or corrosion due to the environment; theft, vandalism, fire, or other intervening acts not attributable to Tuscany; damage resulting from tire wear or tire failure; defacing, scratches, dents, or chips, including those caused by rocks or other road hazards; damage caused by off road use, overloading, or alteration of the product or any of its components or parts; or damage from the use of improper fuels or exceeding the recommended maximum engine RPM. In addition, any costs associated with obtaining warranty service, including transportation, towing, lodging, loss of use, lost earnings, or any other incidental costs are specifically excluded from the coverage of this limited warranty.

Defects and/or damage to certain surfaces or other appearance items, including fabric and paint, may occur at the factory or when the product is in transit to Tuscany or a dealer. These items are usually detected and corrected by Tuscany or a dealer prior to delivery to the customer. You must inspect the product for this type of damage when you take delivery. If you find any such defect or damage you must notify the selling dealer, or Tuscany, at the time of delivery so a determination can be made by Tuscany if these items will be covered by this limited warranty and if corrective work will be performed at no cost to you as provided by this limited warranty.

Events Discharging Tuscany’s Obligations Under Warranty

Certain things completely discharge Tuscany from any obligation under this limited warranty or any implied warranty and void this warranty. These include: any rental or other commercial use or purchase of the product (as defined in this warranty); any product sold from a dealers’ rental fleet, through an auction, wholesale, or through a non-authorized dealer; any service work performed by a non authorized dealer without prior, written approval of Tuscany, misuse; neglect; collision; accidents; failure to provide routine maintenance (See Owner’s Manuals); unauthorized alteration; off road use; damage from weather or the environment; theft; vandalism; tampering; fire; explosions; overloading the product; odometer tampering; and, with respect to vehicles equipped with a supercharger; exceeding recommended maximum RPM, or using improper fuel octane or octane boosters.

Legal Remedies

SINCE INDIANA IS THE STATE OF MANUFACTURE, INDIANA HAS SOLE AND EXCLUSIVE JURISDICTION TO DECIDE LEGAL DISPUTES RELATING TO ALLEGED BREACH OF WARRANTY OR REPRESENTATIONS OF ANY KIND. YOU AGREE THAT INDIANA HAS SOLE AND EXCLUSIVE JURISDICTION OVER THE PARTIES REGARDING THOSE TYPES OF CLAIMS, AND THAT THEY MUST BE FILED IN INDIANA. IN ADDITION, THIS LIMITED WARRANTY, AND ANY CLAIM OR CONTROVERSY ABOUT IT OR ANY SERVICE WORK ON THE VEHICLE, SHALL BE GOVERNED BY, AND SHALL BE INTERPRETED AND CONSTRUED IN ACCORDANCE WITH, THE SUBSTANTIVE LAWS OF THE STATE OF INDIANA. THIS INCLUDES INDIANA’S STATUTE OF LIMITATIONS. THIS WILL BE DONE WITHOUT REGARD TO ANY CONFLICT OF LAW RULE THAT WOULD RESULT IN THE APPLICATION OF LAWS FROM A DIFFERENT JURISDICTION.

Any action to enforce any portion of this limited warranty, any implied warranty, or for revocation of acceptance, MUST BE COMMENCED WITHIN SIX (6) MONTHS AFTER EXPIRATION OF THE 3 YEAR, 36,000 MILE (60,000 Kilometer) WARRANTY COVERAGE PERIOD designated above, or the action will be barred because of the passage of time. Any performance of repairs shall not suspend this limitation period from expiring. Any performance of repairs after the warranty coverage period has expired, or performance of repairs regarding anything excluded from the coverage of this limited warranty shall be considered “good will” repairs. They will not alter the terms of this limited warranty or extend any warranty coverage period or the time limitation for filing in this paragraph. In addition, since it is reasonable to expect that the product will need some service during the warranty period, this warranty does not extend to future performance. It only sets forth what Tuscany will do. It does not guarantee anything about the product for any time period. Nothing in this warranty, or any action of Tuscany, or any agent of Tuscany (actual, apparent, or alleged), shall be interpreted as an extension of any warranty period or the time limitation for filing in this paragraph. Some states do not allow a reduction in the statute of limitations, so this reduction may not apply to you.

Warranty Registration and Miscellaneous

Your warranty registration records should be completed and delivered to the appropriate companies, including Tuscany and the manufacturer/warrantor of component parts. The Tuscany Warranty Registration card must be returned to Tuscany within thirty (30) days of purchase to make this limited warranty effective. Tuscany can better serve your needs should a substantial defect occur by requiring the completion and return of this card. Additionally, registration aids in the securing of faster service and in providing possible recall information. As such, your Tuscany limited warranty will not be registered and this limited warranty will not be effective unless that card is completed and received by Tuscany. Failure to file the Warranty Registration card with Tuscany will affect your rights under this limited warranty, and it will cause delays in obtaining the benefits of this limited warranty.

Tuscany reserves the right to designate where any warranty work can be performed. Tuscany also reserves the right to examine any defective workmanship or part prior to giving any authorization for warranty work.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Consumer Safety Information

If you believe that your vehicle has a safety defect which could cause an accident resulting in injury or death, you should immediately notify the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Shelby. If NHTSA receives similar complaints, it may open an investigation. If NHTSA finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. NHTSA cannot become involved in the resolution of individual disputes between or among customers, automobile dealerships, and/or Shelby.

National Highway Traffic Safety Administration
U. S. Department of Transportation
Washington, D.C. 20590
NHTSA Auto Safety Hotline
1 (800) 429-9393
